Control System

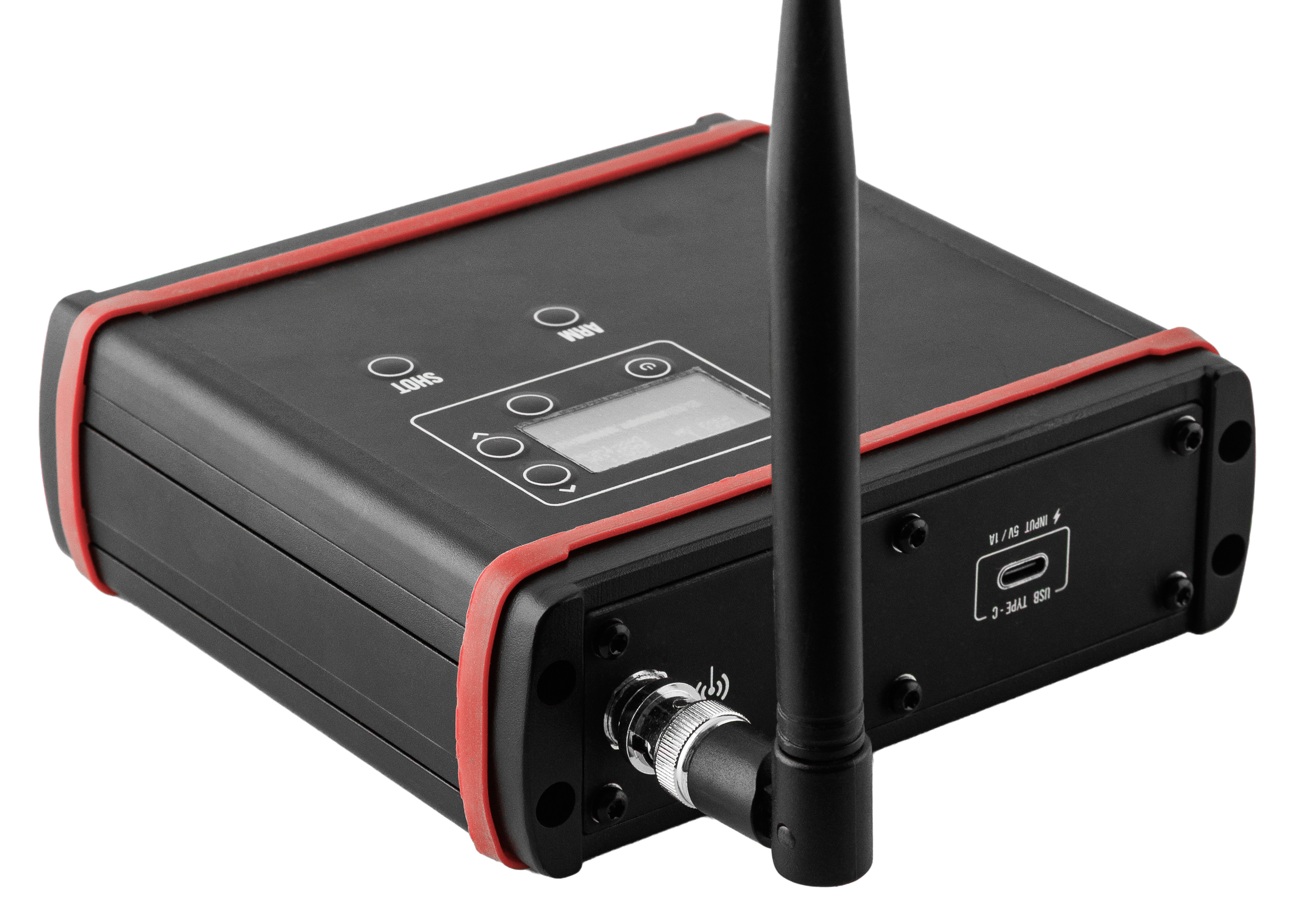

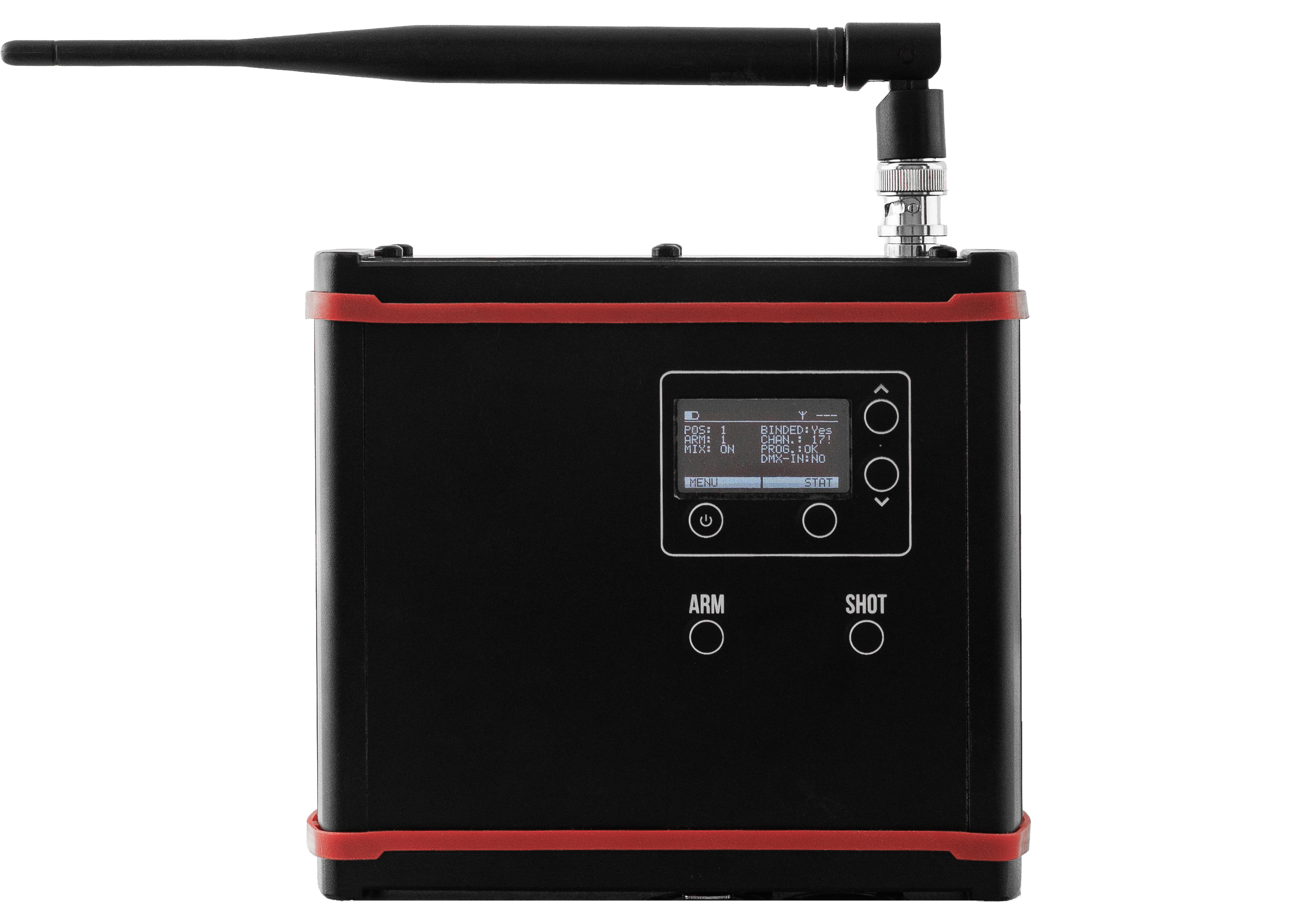

Shot-Control mini
Shot-Control mini is a compact version of the stage effects control system with 1 safety zone, 1 physical trigger button, 8 logical buttons, and 1 control layer. Unlike the larger model, the device can also operate in receiver mode — receiving commands by radio and functioning as a DMX transmitter.
Description
Shot-Control mini is a compact hardware and software control system for stage effects, designed for small shows, local installations, and applications where an extended multi-zone configuration is not required. Compared to the larger version, the device features 1 safety zone, 1 physical trigger button, 8 logical buttons, and 1 control layer, while maintaining convenient setup and operation within the MainFX system.
Additionally, Shot-Control mini supports receiver mode, in which it can work as a DMX transmitter, receiving commands over radio and sending them to a DMX line.
Advantages Shot-Control mini:
- Compactness: a reduced-size version for small shows, local installations, and simple control tasks.
- Flexible configuration: works with Windows and iOS / Android, with setup via Bluetooth.
- Integration into show systems: supports Finale 3D and is convenient to use within the MainFX ecosystem.
- Data exchange: synchronization of show files and configuration through cloud storage.
- Communication security: protected radio protocol with encryption, a private key, and a user password.
- Receiver mode: the device can receive commands over radio and operate as a DMX transmitter.
- Easy integration: can be used as an intermediate link between radio control and a DMX line.
Main Features:
| Safety zones | 1 ARM zone |
| Physical trigger buttons | 1 |
| Logical trigger buttons | 8 |
| Control layers | 1 |
| Simultaneous program launch | up to 8 programs at the same time |
| Configuration interface | iOS / Android mobile application via Bluetooth |
| Show software | Windows application with visualization |
| Finale 3D support | yes |
| DMX | 1 input, 1 output |
| Operating frequency | 864–869 MHz |
| Maximum range | up to 10 km in ideal line-of-sight conditions |
| Battery | Li-ion 6000 mAh |
| Battery life | up to 24 hours |
| Housing | aluminum |
| Protection rating | IP64 |
