Control System
MANCON-x2

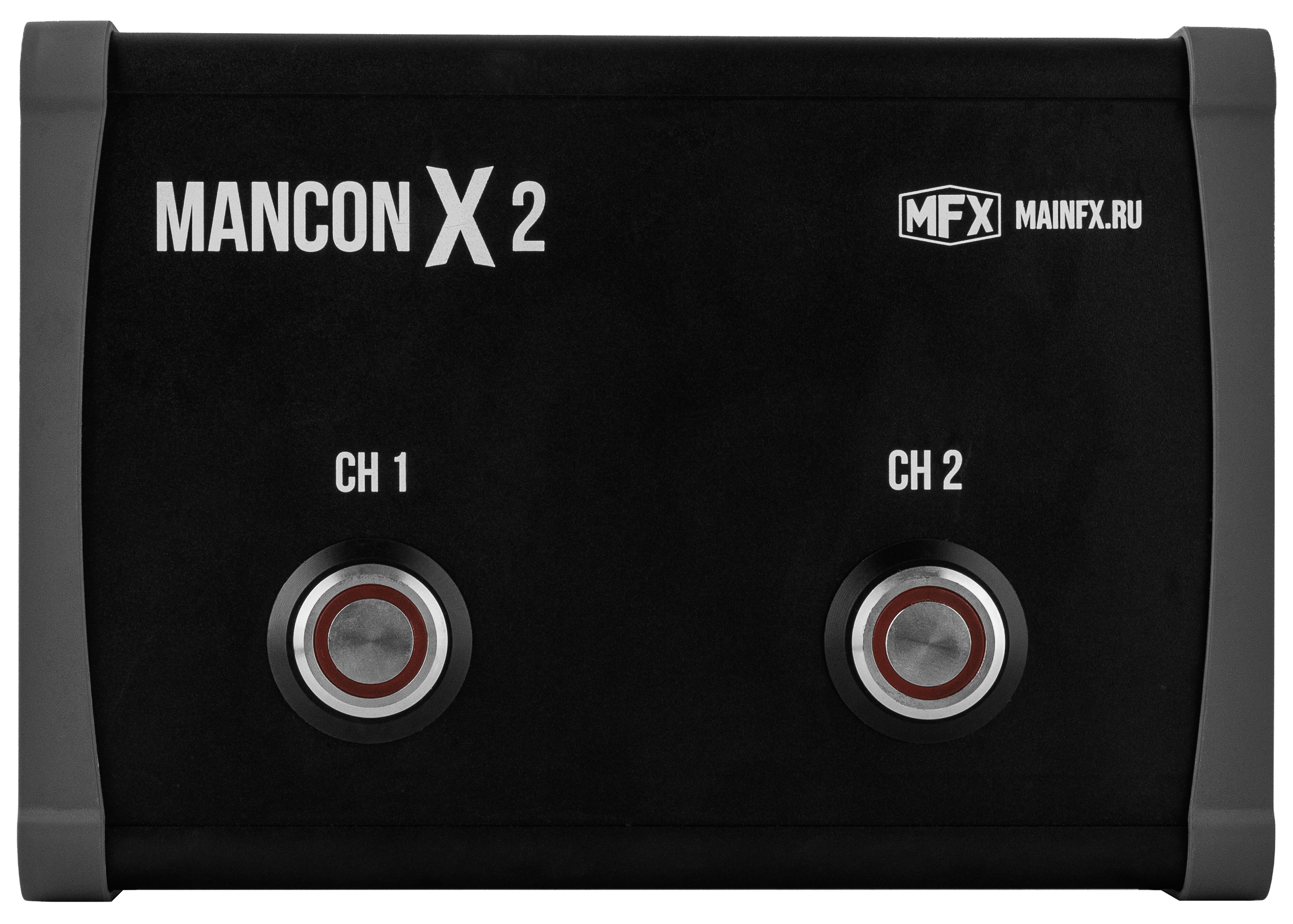

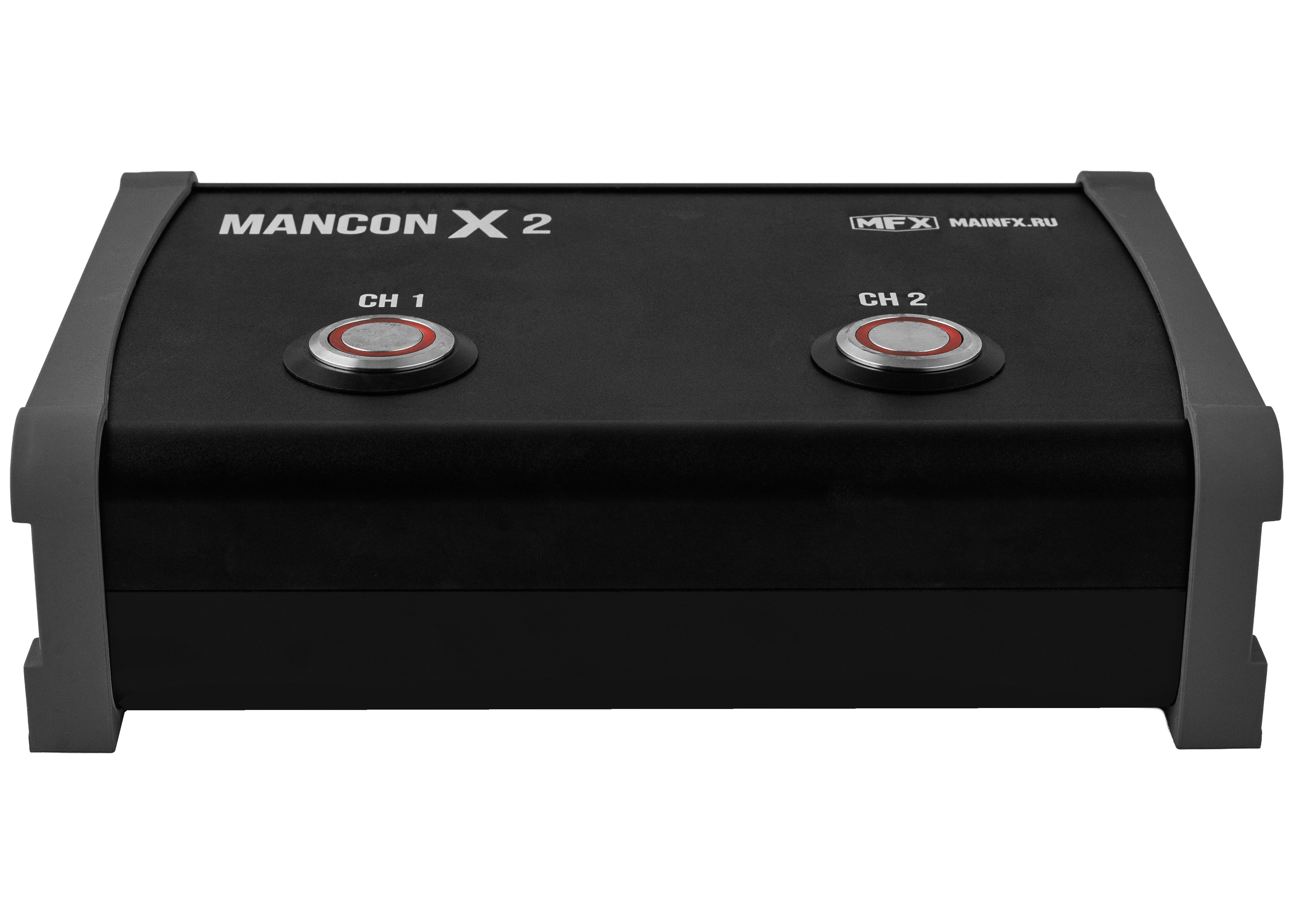

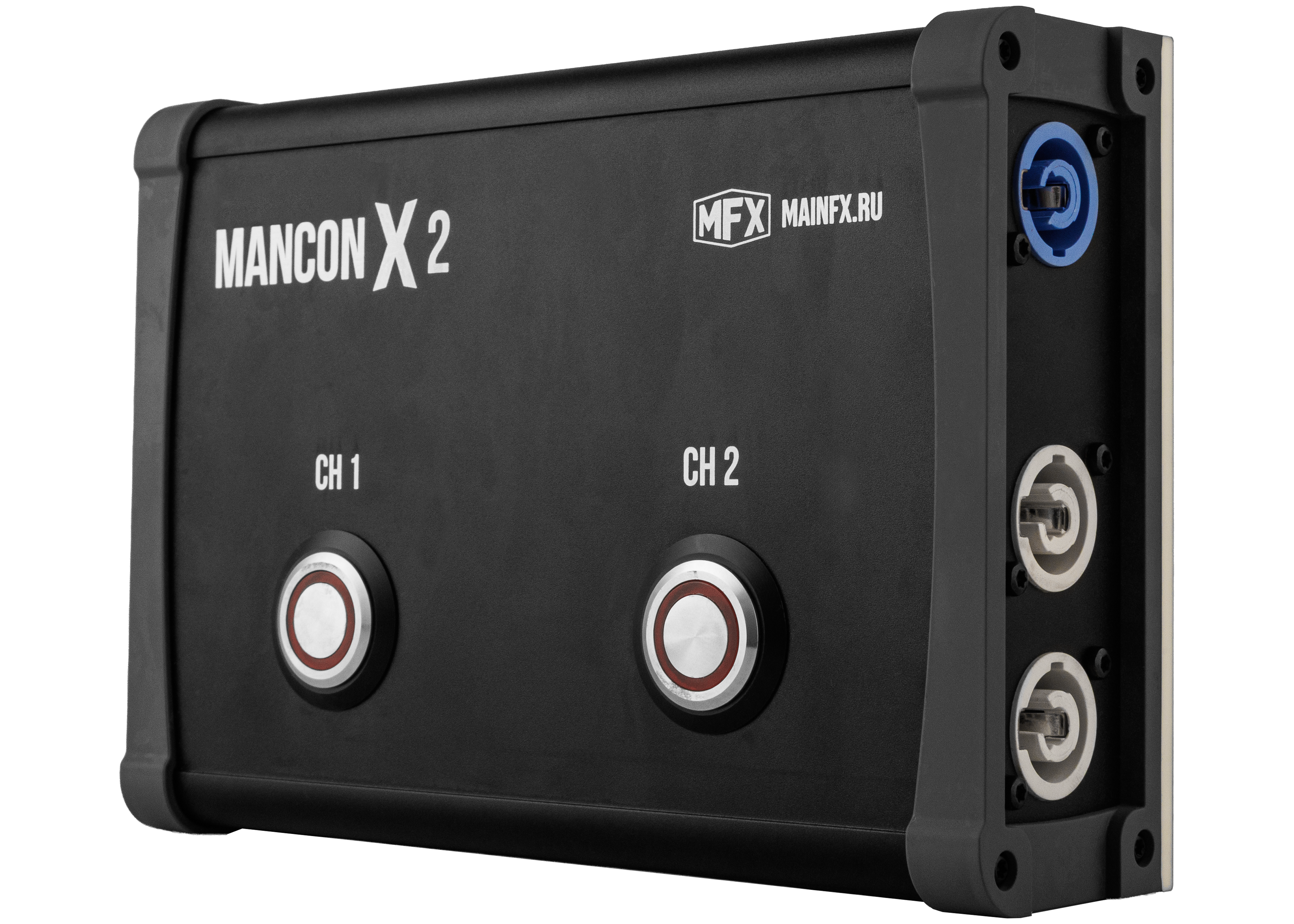

Two-channel controller in an enclosure with two buttons and two built-in relays. Designed to control two 110–230 V loads.
Description
MANCON-x2 is a two-channel push-button controller in a compact enclosure with two built-in relays. It is designed for direct control of two 110–230 V loads. Each channel is activated by a separate button, and equipment is connected via Powercon connectors. The load capacity is up to 16 A per channel, with a total current not exceeding 16 A. The enclosure protection rating is IP44. It is ideal for operating the CO2JET heavy fog generator as well as streamer machines.
Main Features:
| Mains voltage | 230 V |
| Maximum current per channel | 16 A |
| Maximum total current for 2 channels | 16 A |
| Protection rating | IP44 |
| Dimensions (L/W/H) | 170 / 120 / 60 mm |
| Weight | 1 kg |
| Warranty period | 12 months |
Accessories
PowerCon cable 5 m
