Fire Generator
Leaf Flame

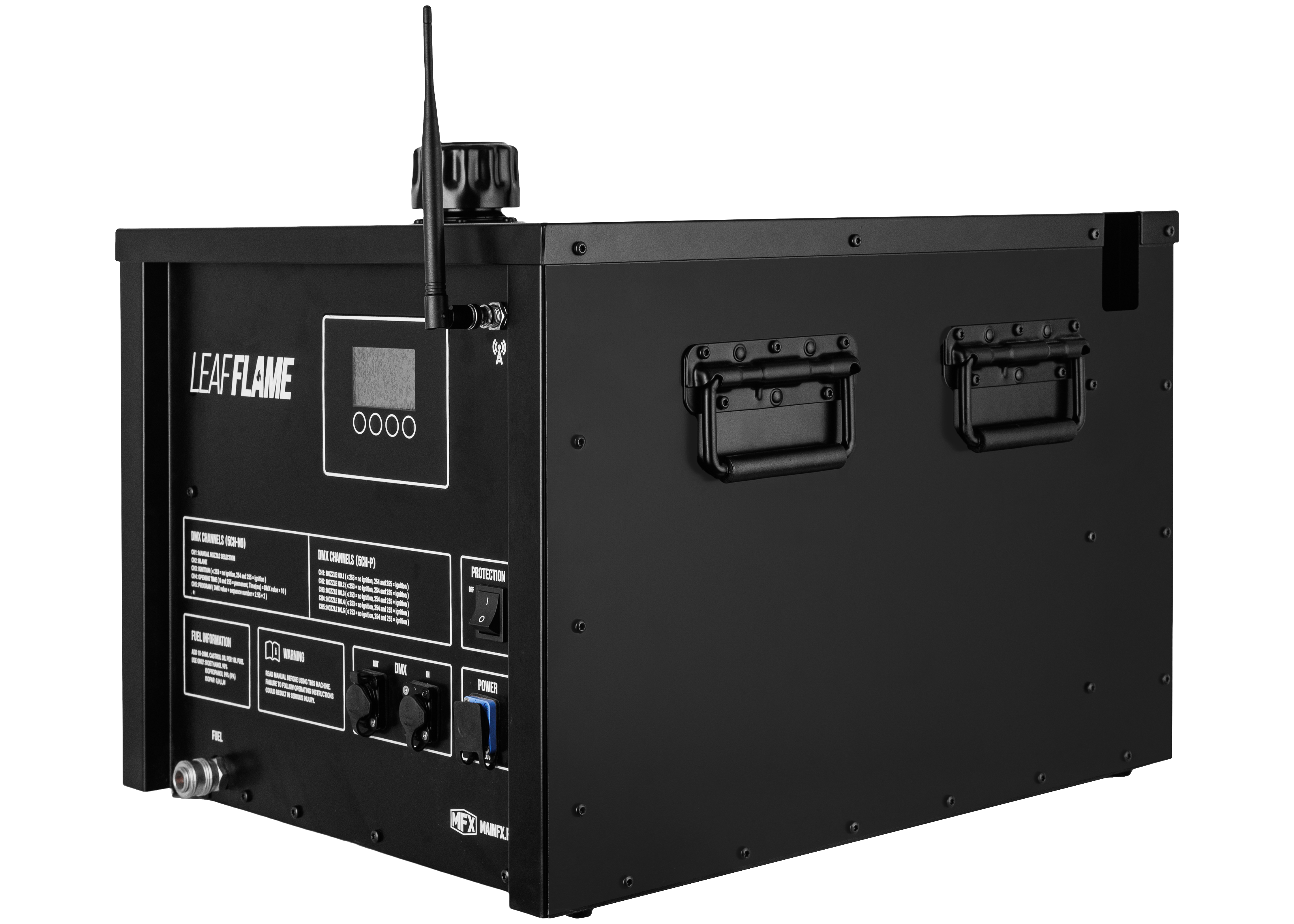

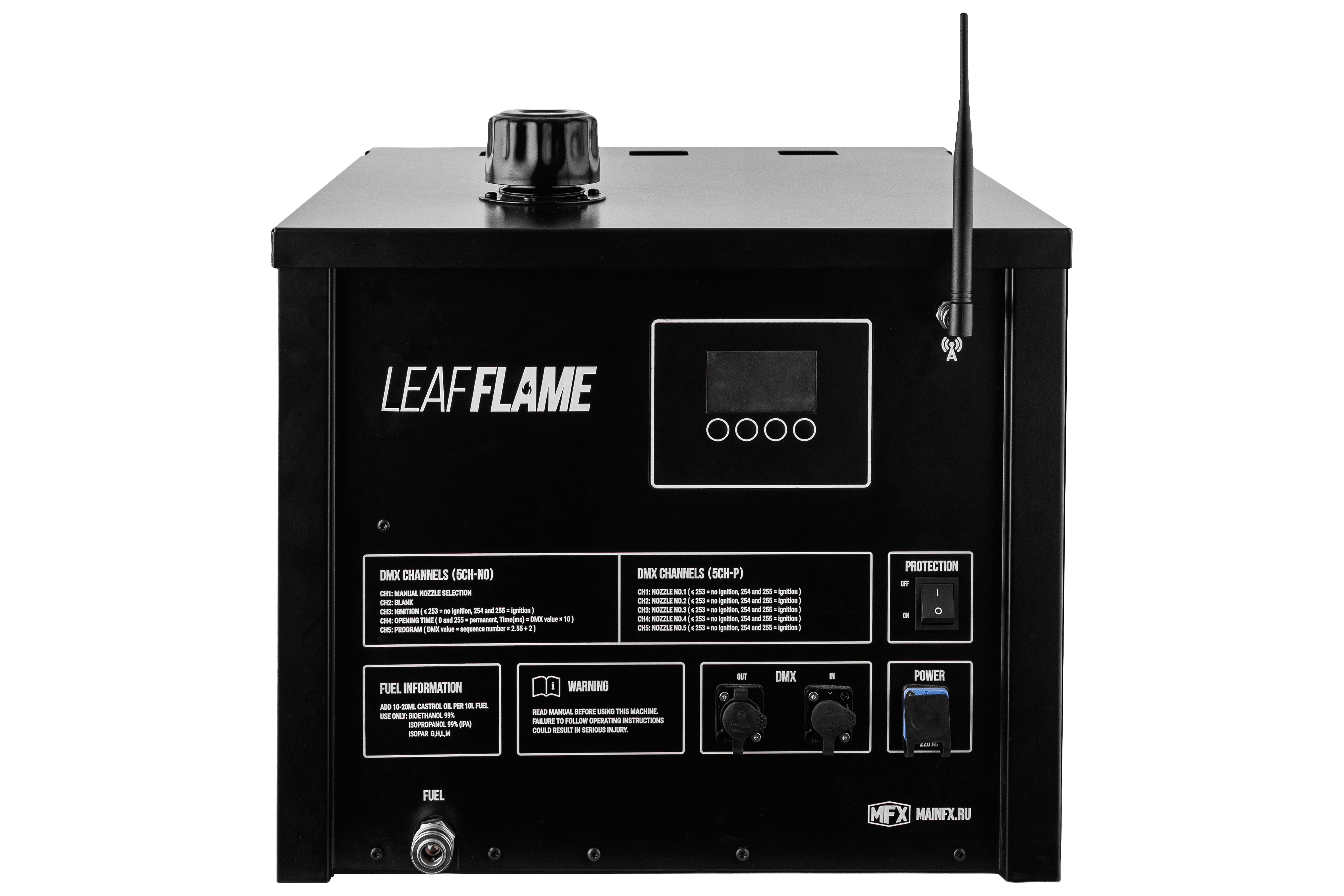

Leaf Flame is a liquid flame generator with five independent nozzles, an effect height of up to 10 m, and remote radio control via Shot Control. The unit is equipped with a 30 L tank, supports remote parameter adjustment, and features an intelligent filling and draining system for the internal reservoir in both manual and automatic modes.
Description
Leaf Flame is a professional liquid flame generator designed for concert venues, outdoor shows, opening ceremonies, sports events, and other large-scale productions. The unit is equipped with five independent nozzles that can operate individually or simultaneously, allowing for a wide range of flame effects, from single bursts to powerful group volleys.
The device supports radio control via Shot Control as well as DMX, making it easy to integrate into existing show systems. All key settings can be adjusted remotely without direct access to the unit, which is especially convenient for stage installations or hard-to-reach locations.
Leaf Flame is fitted with a 30-liter tank and an intelligent internal reservoir management system. Filling and draining can be performed in both manual and automatic modes, simplifying setup, servicing, and operation. Its robust construction, multi-level protection, and IP54 ingress protection rating make it a reliable solution for professional use.
Advantages Leaf Flame:
- Powerful visual effect: 5 nozzles with independent or simultaneous operation, flame height up to 10 m.
- Flexible control: support for Shot Control and DMX for easy integration into show systems.
- Remote configuration: adjustment of all key parameters without direct access to the unit.
- Ease of operation: intelligent filling and draining system for the internal reservoir in manual and automatic modes.
- Reliable design: built-in pump, high-quality valve system, and protected ignition assembly.
- Extended fuel capacity: 30 L tank for longer operation without frequent refilling.
- Enclosure protection: IP54 protection for operation in demanding environments.
Main Features:
| Device type | liquid flame generator |
| Number of nozzles | 5 |
| Nozzle control | independent or simultaneous |
| Number of preset sequences | 90 |
| Control | radio Shot Control, DMX |
| Remote parameter adjustment | supported |
| Flame height | 8–10 m |
| Flame directions | 5 |
| Fuel used | isopropyl alcohol, ethanol, isoparaffins |
| Tank capacity | 30 L |
| Fuel consumption | 60 ml/s per nozzle |
| Fuel supply system | built-in pump |
| Internal reservoir filling and draining system | manual and automatic modes |
| Housing material | 304 stainless steel |
| Power supply | 220/110 V, 50/60 Hz |
| Power consumption | 3000 W |
| Ignition | high-voltage electronic |
| Operating temperature | from -20 °C to +50 °C |
| Protection rating | IP54 |
| Base platform dimensions | 600 × 430 × 380 mm |
| Weight without fuel | 48 kg |
| Fuel operating pressure | 0.8–1.5 MPa |
